Silhouette Electronic Plotter Cutting Tool Cameo® 4 PRO

Description

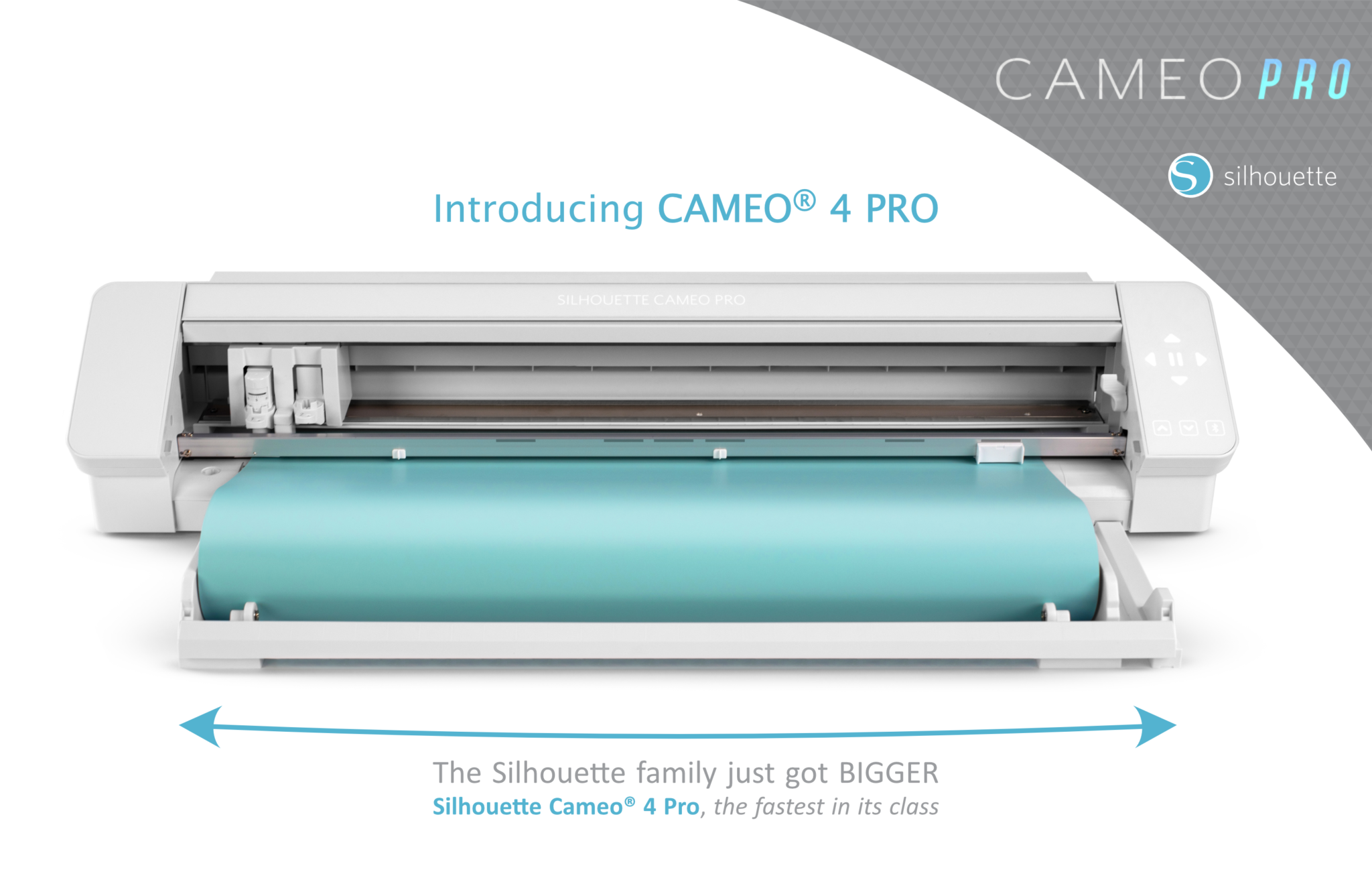

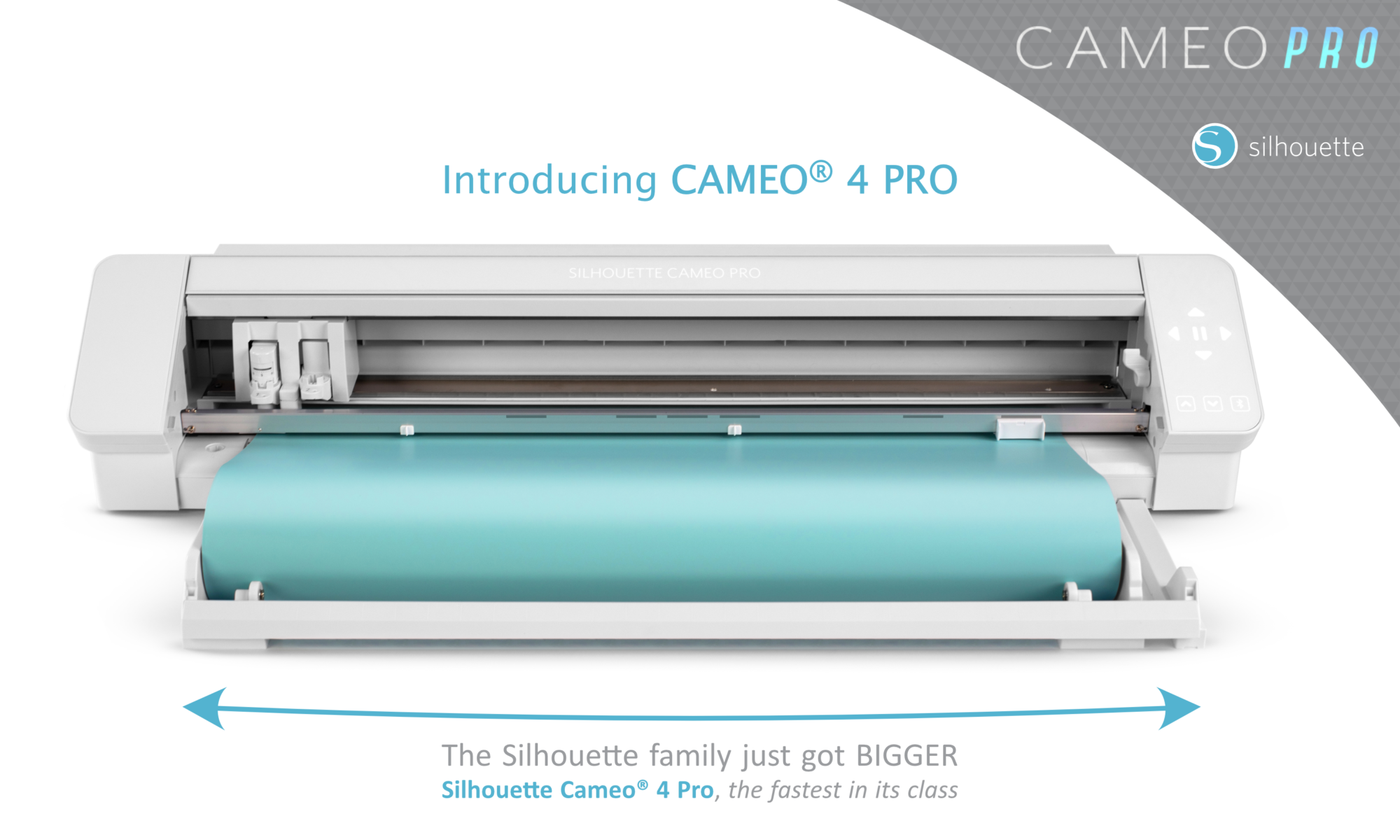

Introducing the All New Silhouette Cameo® 4 PROSilhouette Cameo 4 ProSilhouette Cameo®4 Pro

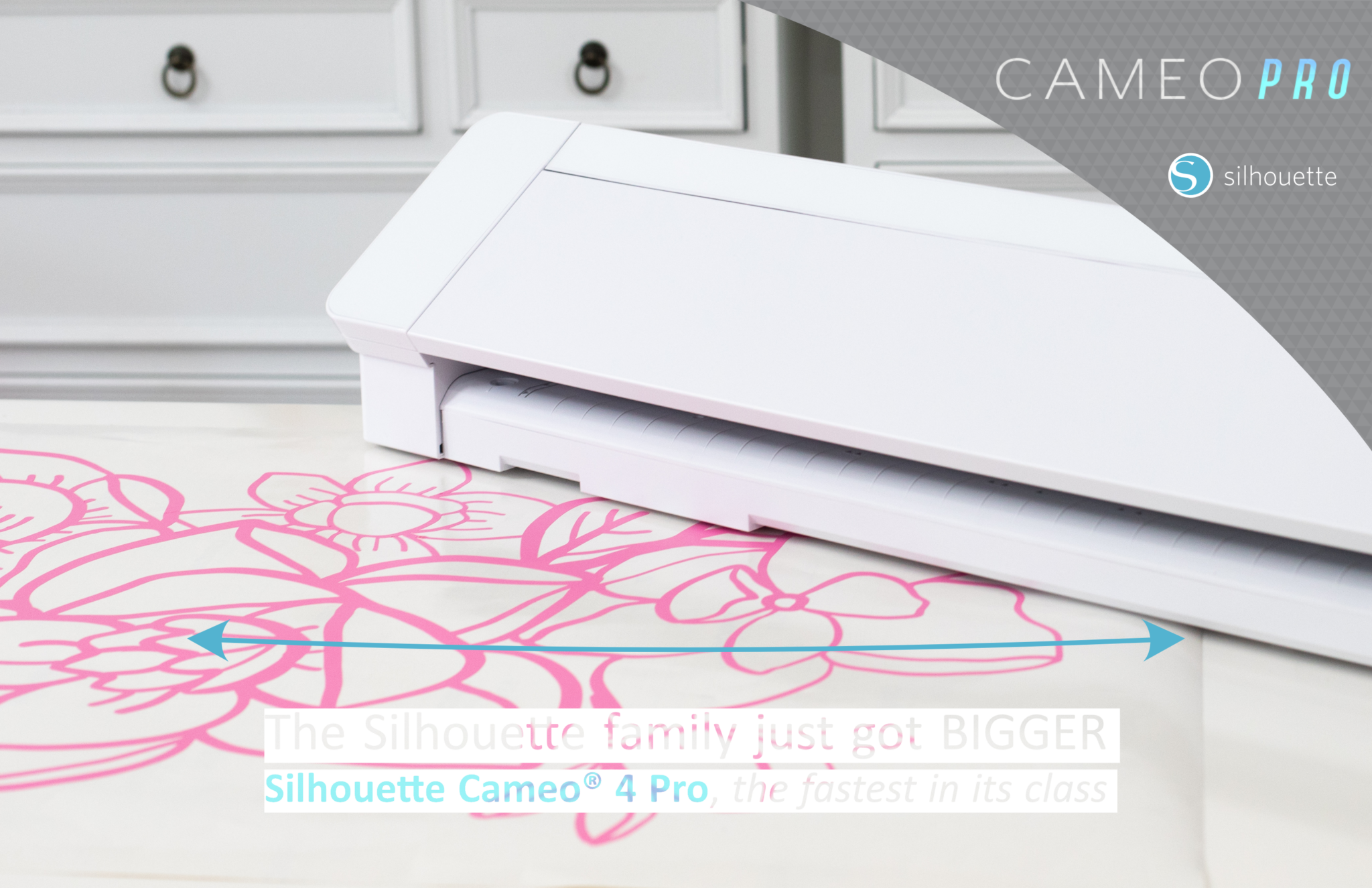

Silhouette’s game-changing desktop cutting machine—the Silhouette Cameo® 4 Pro—is here! Now with the Cameo 4 Pro, there are even more cutting possibilities. The Cameo 4 Pro can cut up to 24 inches wide, and like to its predecessor but it’s got some brand new features. With an all new, dual-motor system, you can experiences increased power and speed. The Cameo® 4 Pro is compatible with both Mac and Windows operating systems and utilizes Silhouette Studio®, the dynamic software behind any Silhouette cutting machine. And as a Silhouette user, you’ll have access to over 150,000 designs at the Silhouette Design Store. You are what you make, so make something great!

Product Specifications
87.6cm x 19.5cm x 17cm
19 lbs 6.4 oz

Max Cutting Area
61cm x 61cm (mat)
61cm x 18.3mtr (roll)

Max Media Thickness
3 mm

Max Cutting Force
0.210kg/5 kg

ALL New Features

It has all-new technology to increase your efficiency and help you do things you haven’t been able to do before. Now you can cut thicker materials, fabric without a stabilizer backing, and paper without a cutting mat.

More Powerful Motor in Dual Carriage

The dual carriage on the Silhouette Cameo® 4 Pro packs quite the punch now. The primary tool chamber is the chamber you are more familiar with. It has a standard force setting of up to 210 gf, allowing you to cut basic material types. The secondary chamber provides increased force of up to 5 kgf used with select specialty tools for material types that require either special care or more force to be cut.

New Specialty Tools

The Silhouette Cameo® 4 Pro is compatible with three new specialty tools: the Rotary Blade for Cameo 4, the 3mm Kraft Blade for Cameo 4, and the Punch Tool for Cameo 4. Each of these tools are compatible with the Cameo 4 only and can be used only in Carriage 2 of the machine.

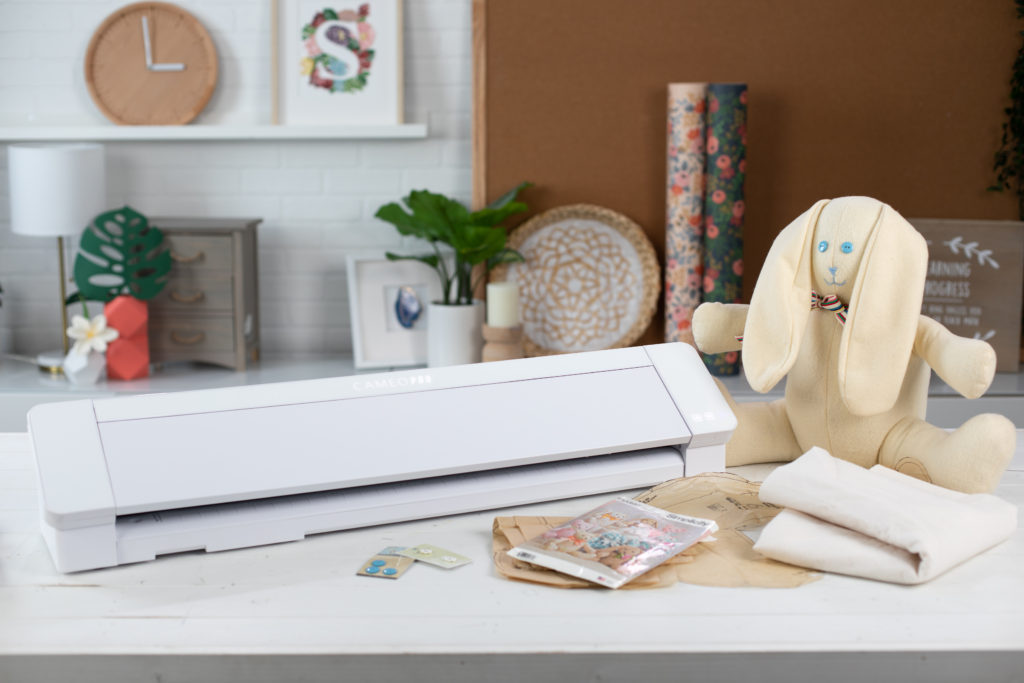

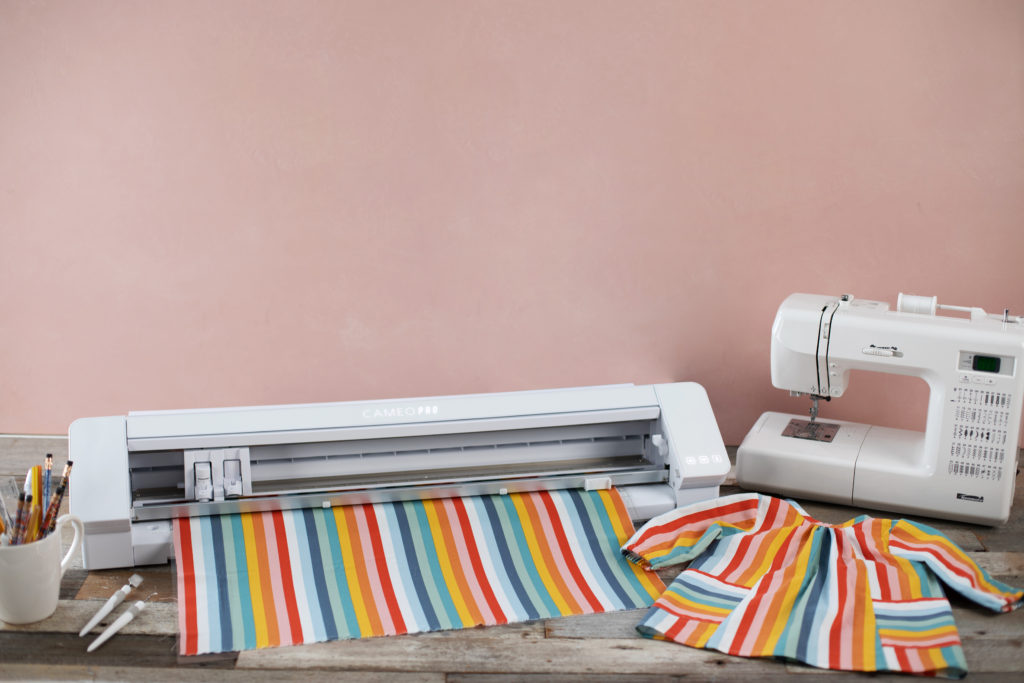

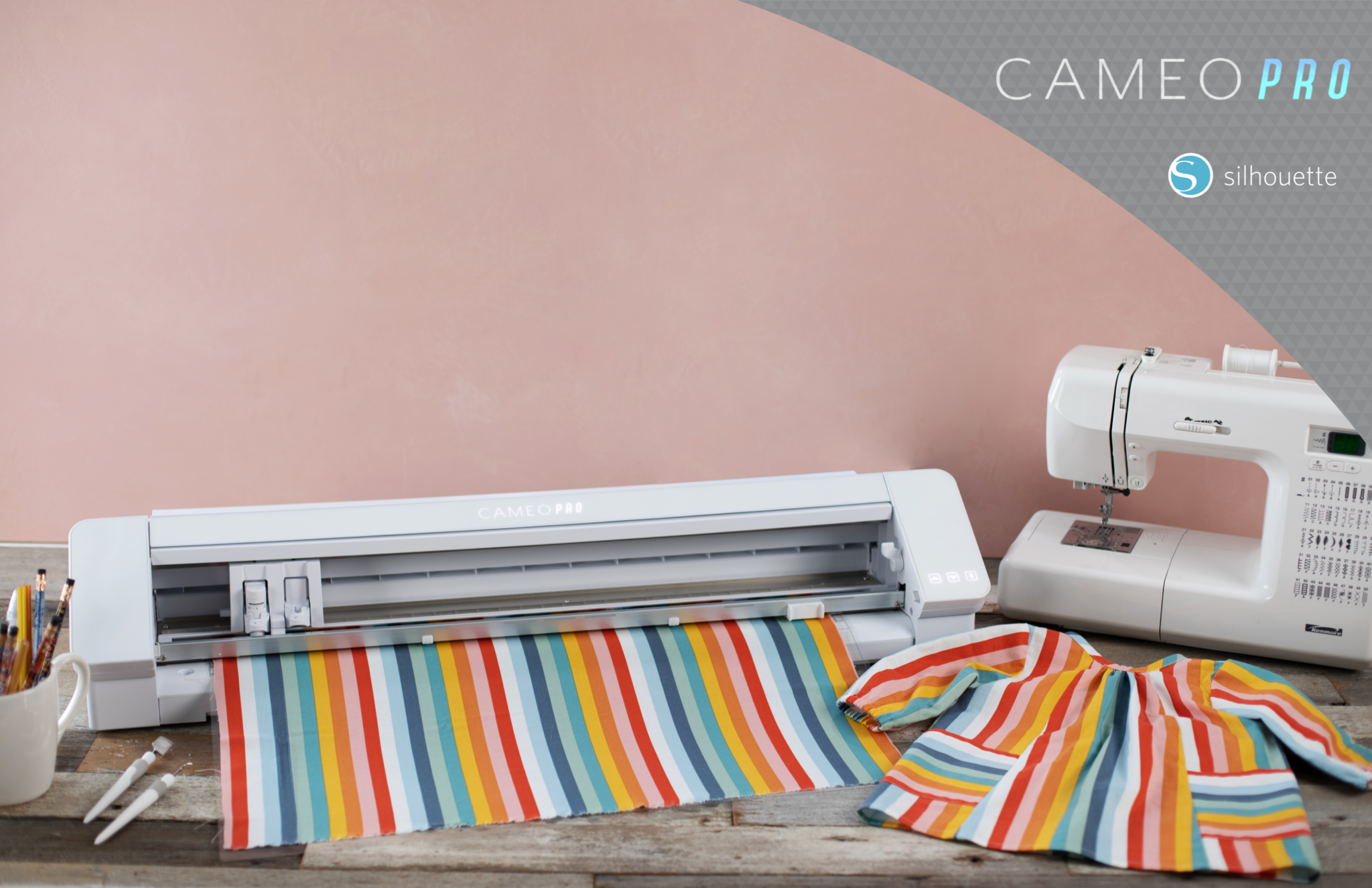

  • With the Rotary Blade, you can cut fabric materials like cotton fabric, felt, leather, and more.
  • The Kraft Blade for Cameo 4 can cut materials like acetate, craft foam, and burlap.
  • The Punch Tool punches holes in the spaces you need to weed vinyl or heat transfer, making weeding faster and easier.
Auto Tool Detect is a feature that all the Cameo 4 machines have, and it allows the Silhouette Studio® software to automatically detect what tools are inserted into your machine. This ensures you have the right cut settings every time.

The Silhouette Cameo® 4 Pro uses a simplified touch panel to load and unload your material as well as move the cutting mat or the position of the tools or connect Bluetooth®.

Built-in Roll Feeder and Crosscutter

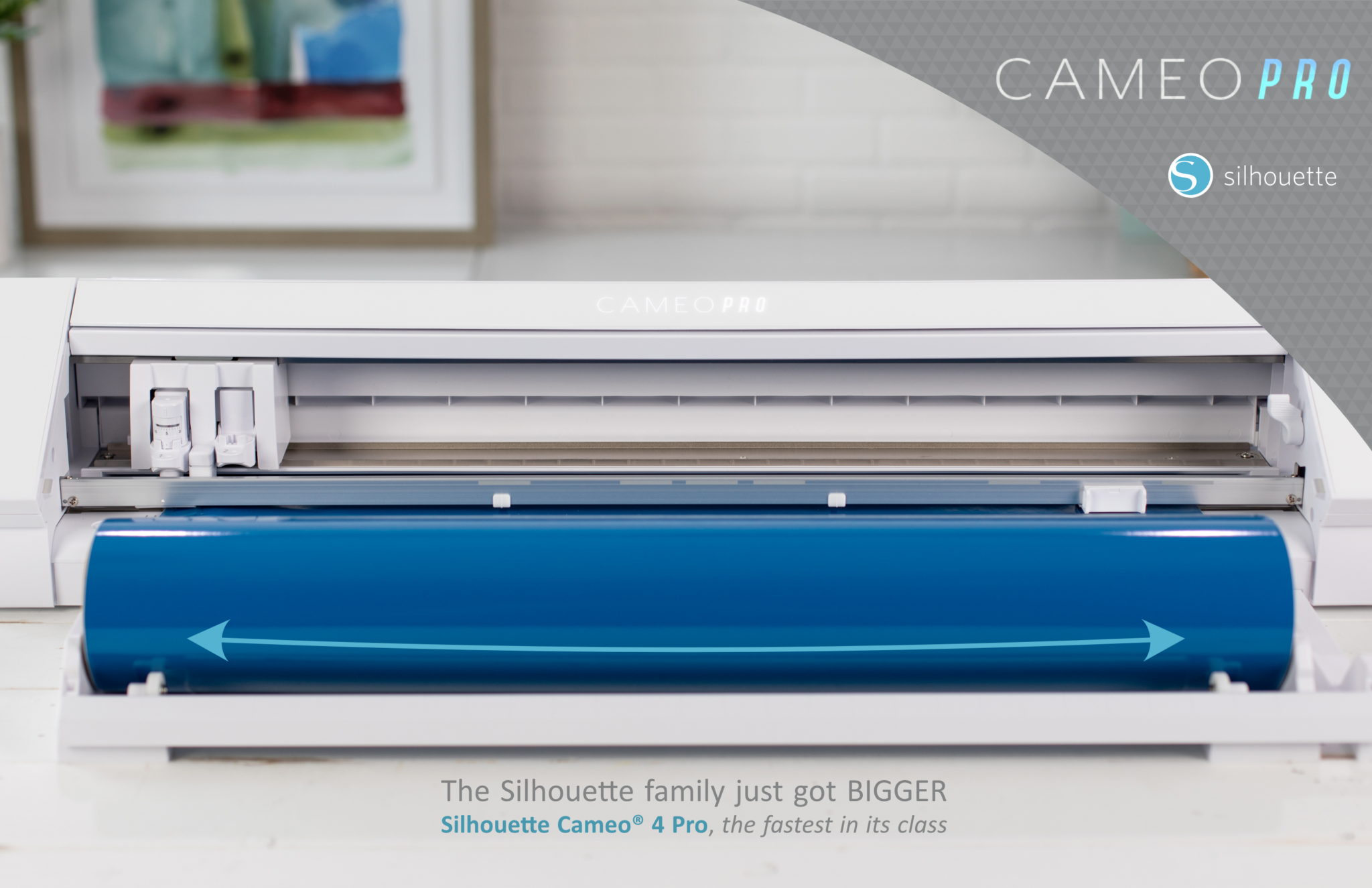

Having a roll feeder and crosscutter built in to your Silhouette Cameo® 4 Pro makes cutting rolled materials really simple. The roll feeder slides out from a tray located on the bottom of the machine and folds out. It can hold up to 24-inch (61cm) rolls (with a maximum roll diameter of 3 inches).

The back of the machine houses the crosscutter. After you’ve cut your material, all you need to do is unlock the crosscutter and slide the crosscutter blade along the track of the crosscutter cartridge

Pop-out Cut Mode

For the first time ever since Silhouette Cameo® 4, cut materials like paper and cardstock without a cutting mat. With this feature, the Silhouette Cameo® 4 Pro will make a cut but keep the material in place using perforation cuts in strategic places. Once the material is removed from the cutting machine, simply pop the cut design from the paper.

Silhouette Cameo® 4 is available in three different models
